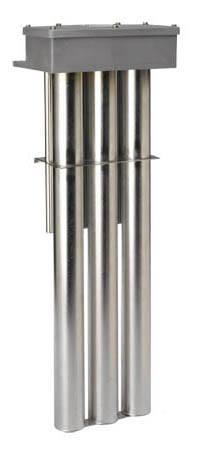

D3 Series, Derated Triple Metal Heaters

D3 Series, Derated Triple Metal Heaters
WATTS VOLTS HOT ZONE in./(mm) LENGTH in./(mm) PLAIN STEEL
Model Number
304 STAINLESS
Model Number
316 STAINLESS
Model Number
TITANIUM
Model Number
SHIP WT. Lbs./(kg)
1500 120 6 (155) 11 (280) D3P1.5111-*-** D3F1.5111-*-** D3S1.5111-*-** D3T1.5111-*-** 21 (9.5)
1500 240 6 (155) 11 (280) D3P1.5211-*-** D3F1.5211-*-** D3S1.5211-*-** D3T1.5211-*-** 21 (9.5)
3000 240 10 (255) 17 (430) D3P3217-*-** D3F3217-*-** D3S3217-*-** D3T3217-*-** 30 (14)
3000 480 10 (255) 17 (430) D3P3417-*-** D3F3417-*-** D3S3417-*-** D3T3417-*-** 30 (14)
4500 240 16 (405) 23 (585) D3P4.5223-*-** D3F4.5223-*-** D3S4.5223-*-** D3T4.5223-*-** 33 (15)
4500 480 16 (405) 23 (585) D3P4.5423-*-** D3F4.5423-*-** D3S4.5423-*-** D3T4.5423-*-** 33 (15)
6000 240 20 (510) 29 (735) D3P6229-*-** D3F6229-*-** D3S6229-*-** D3T6229-*-** 39 (18)
6000 480 20 (510) 29 (735) D3P6429-*-** D3F6429-*-** D3S6429-*-** D3T6429-*-** 39 (18)
7500 240 25 (635) 35 (890) D3P7.5235-*-** D3F7.5235-*-** D3S7.5235-*-** D3T7.5235-*-** 45 (20.5)
7500 480 25 (635) 35 (890) D3P7.5435-*-** D3F7.5435-*-** D3S7.5435-*-** D3T7.5435-*-** 45 (20.5)
9000 240 30 (762) 40 (1015) D3P9240-*-** D3F9240-*-** D3S9240-*-** D3T9240-*-** 51 (23)
9000 480 30 (762) 40 (1015) D3P9440-*-** D3F9440-*-** D3S9440-*-** D3T9440-*-** 51 (23)
12000 240 37 (940) 47 (1195) D3P12247-*-** D3F12247-*-** D3S12247-*-** D3T12247-*-** 63 (28.5)
12000 480 37 (940) 47 (1195) D3P12447-*-** D3F12447-*-** D3S12447-*-** D3T12447-*-** 63 (28.5)
13500 240 44 (1120) 54 (1370) D3P13.5254-*-** D3F13.5254-*-** D3S13.5254-*-** D3T13.5254-*-** 69 (31)
13500 480 44 (1120) 54 (1370) D3P13.5454-*-** D3F13.5454-*-** D3S13.5454-*-** D3T13.5454-*-** 69 (31)
15000 240 49 (1245) 59 (1500) D3P15259-*-** D3F15259-*-** D3S15259-*-** D3T15259-*-** 75 (34)
15000 480 49 (1245) 59 (1500) D3P15459-*-** D3F15459-*-** D3S15459-*-** D3T15459-*-** 75 (34)
18000 240 58 (1475) 68 (1730) D3P18268-*-** D3F18268-*-** D3S18268-*-** D3T18268-*-** 84 (38)
18000 480 58 (1475) 68 (1730) D3P18468-*-** D3F18468-*-** D3S18468-*-** D3T18468-*-** 84 (38)
Standard unit consists of single head with single conduit. Add "-1" for single phase or "-3" for three phase.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Materials available for use in most concentrated aqueous alkaline solutions, plating and phosphate solutions. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION:
  • Heavy wall metal sheaths and screw plug available in steel, 304 stainless steel, 316 stainless steel and titanium.

OUTSTANDING PERFORMANCE:
  • Watt densities of 18 watts per square inch (2.8 w/cm2) extend service life.

CORROSION RESISTANT HEAD:
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:
  • Grounded construction.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS:
  • UL listed (except steel) to U.S. and Canadian safety requirements, and CE (except 600 volts).

SIZES:
  • 1,500 watts to 18,000 watts.

VOLTAGES:
  • 120 to 600 volts.

CONSULT FACTORY FOR THE FOLLOWING:

  • Replaceable thermal protectors:
    • P4: for solutions from 180° F (82° C) to 230° F (110° C).
    • P5: for solutions from 230° F (110° C) to 300° F (150° C).
  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P6: for solutions from 180° F (82° C) to 230° F (110° C).
    • P7: for solutions from 230° F (110° C) to 300° F (150° C).
  • Special configurations and lengths.
  • Longer wire and conduit lengths.
  • Lower watt densities for highly viscous solutions.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
