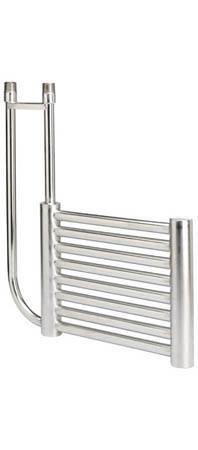

G Series, Metal Heating and Cooling Grid Coils
12-1/2" WIDTH (8 TUBES)
| EXCHANGE AREA (Sq. ft.) |
NO. OF TUBES | WIDTH in./(mm) | LENGTH in./(mm) | PROTECH MODEL NUMBER | SHIP WT. Lbs./(kg) |
|---|---|---|---|---|---|
| 4.6 | 8 | 12.5 (318) | 24 (610) | *8G-24 | 13 (6) |
| 5.6 | 8 | 12.5 (318) | 30 (762) | *8G-30 | 14 (6.5) |
| 6.7 | 8 | 12.5 (318) | 36 (915) | *8G-36 | 15 (7) |
| 8.8 | 8 | 12.5 (318) | 48 (1219) | *8G-48 | 18 (8) |
| 10.9 | 8 | 12.5 (318) | 60 (1524) | *8G-60 | 20 (9) |
| 13.7 | 8 | 12.5 (318) | 72 (1829) | *8G-72 | 25 (11.5) |
| 15.1 | 8 | 12.5 (318) | 84 (2134) | *8G-84 | 30 (13.5) |
| 17.2 | 8 | 12.5 (318) | 96 (2438) | *8G-96 | 35 (16) |
| 19.2 | 8 | 12.5 (318) | 108 (2743) | *8G-108 | 38 (17) |
| 21.3 | 8 | 12.5 (318) | 120 (3048) | *8G-120 | 42 (19) |
| 23.4 | 8 | 12.5 (318) | 132 (3353) | *8G-132 | 45 (20.5) |
| 25.5 | 8 | 12.5 (318) | 144 (3658) | *8G-144 | 50 (22.5) |
18-1/2" WIDTH (12 TUBES)
| EXCHANGE AREA (Sq. ft.) |
NO. OF TUBES | WIDTH in./(mm) | LENGTH in./(mm) | PROTECH MODEL NUMBER | SHIP WT. Lbs./(kg) |
|---|---|---|---|---|---|
| 6.8 | 12 | 18.5 (470) | 24 (610) | *12G-24 | 15 (7) |
| 8.4 | 12 | 18.5 (470) | 30 (762) | *12G-30 | 18 (8) |
| 10.0 | 12 | 18.5 (470) | 36 (915) | *12G-36 | 22 (10) |
| 13.2 | 12 | 18.5 (470) | 48 (1219) | *12G-48 | 28 (13) |
| 16.3 | 12 | 18.5 (470) | 60 (1524) | *12G-60 | 35 (16) |
| 19.5 | 12 | 18.5 (470) | 72 (1829) | *12G-72 | 45 (20.5) |
| 22.6 | 12 | 18.5 (470) | 84 (2134) | *12G-84 | 50 (22.5) |
| 25.7 | 12 | 18.5 (470) | 96 (2438) | *12G-96 | 56 (25.5) |
| 28.9 | 12 | 18.5 (470) | 108 (2743) | *12G-108 | 62 (28) |
| 32.0 | 12 | 18.5 (470) | 120 (3048) | *12G-120 | 68 (31) |
| 35.2 | 12 | 18.5 (470) | 132 (3353) | *12G-132 | 75 (34) |
| 38.3 | 12 | 18.5 (470) | 144 (3658) | *12G-144 | 90 (41) |
24-1/2" WIDTH (16 TUBES)
| EXCHANGE AREA (Sq. ft.) |
NO. OF TUBES | WIDTH in./(mm) | LENGTH in./(mm) | PROTECH MODEL NUMBER | SHIP WT. Lbs./(kg) |
|---|---|---|---|---|---|
| 9.4 | 16 | 24.5 (622) | 24 (610) | *16G-24 | 20 (9) |
| 11.5 | 16 | 24.5 (622) | 30 (762) | *16G-30 | 25 (11.5) |
| 13.6 | 16 | 24.5 (622) | 36 (915) | *16G-36 | 29 (13) |
| 17.8 | 16 | 24.5 (622) | 48 (1219) | *16G-48 | 35 (15.5) |
| 22.0 | 16 | 24.5 (622) | 60 (1524) | *16G-60 | 43 (19.5) |
| 26.1 | 16 | 24.5 (622) | 72 (1829) | *16G-72 | 50 (22.5) |
| 30.3 | 16 | 24.5 (622) | 84 (2134) | *16G-84 | 62 (28) |
| 34.5 | 16 | 24.5 (622) | 96 (2438) | *16G-96 | 70 (32) |
| 38.7 | 16 | 24.5 (622) | 108 (2743) | *16G-108 | 80 (36) |
| 42.9 | 16 | 24.5 (622) | 120 (3048) | *16G-120 | 88 (40) |
| 47.1 | 16 | 24.5 (622) | 132 (3353) | *16G-132 | 97 (44) |
| 51.3 | 16 | 24.5 (622) | 144 (3658) | *16G-144 | 105 (47.5) |
30-1/2" WIDTH (20 TUBES)
| EXCHANGE AREA (Sq. ft.) |
NO. OF TUBES | WIDTH in./(mm) | LENGTH in./(mm) | PROTECH MODEL NUMBER | SHIP WT. Lbs./(kg) |
|---|---|---|---|---|---|
| 11.5 | 20 | 30.5 (775) | 24 (610) | *20G-24 | 23 (10.5) |
| 14.2 | 20 | 30.5 (775) | 30 (762) | *20G-30 | 28 (13) |
| 16.8 | 20 | 30.5 (775) | 36 (915) | *20G-36 | 34 (15.5) |
| 22.0 | 20 | 30.5 (775) | 48 (1219) | *20G-48 | 40 (18) |
| 27.2 | 20 | 30.5 (775) | 60 (1524) | *20G-60 | 48 (22) |
| 32.5 | 20 | 30.5 (775) | 72 (1829) | *20G-72 | 55 (25) |
| 37.7 | 20 | 30.5 (775) | 84 (2134) | *20G-84 | 68 (31) |
| 42.9 | 20 | 30.5 (775) | 96 (2438) | *20G-96 | 75 (34) |
| 48.2 | 20 | 30.5 (775) | 108 (2743) | *20G-108 | 87 (39.5) |
| 53.4 | 20 | 30.5 (775) | 120 (3048) | *20G-120 | 100 (45.5) |
| 58.6 | 20 | 30.5 (775) | 132 (3353) | *20G-132 | 115 (52) |
| 63.9 | 20 | 30.5 (775) | 144 (3658) | *20G-144 | 125 (57) |
36-1/2" WIDTH (24 TUBES)
| EXCHANGE AREA (Sq. ft.) |
NO. OF TUBES | WIDTH in./(mm) | LENGTH in./(mm) | PROTECH MODEL NUMBER | SHIP WT. Lbs./(kg) |
|---|---|---|---|---|---|
| 13.7 | 24 | 36.5 (927) | 24 (610) | *24G-24 | 38 (17) |
| 16.8 | 24 | 36.5 (927) | 30 (762) | *24G-30 | 42 (19) |
| 20.0 | 24 | 36.5 (927) | 36 (915) | *24G-36 | 45 (20.5) |
| 26.3 | 24 | 36.5 (927) | 48 (1219) | *24G-48 | 50 (22.5) |
| 32.5 | 24 | 36.5 (927) | 60 (1524) | *24G-60 | 57 (26) |
| 38.8 | 24 | 36.5 (927) | 72 (1829) | *24G-72 | 65 (29.5) |
| 45.1 | 24 | 36.5 (927) | 84 (2134) | *24G-84 | 75 (34) |
| 51.4 | 24 | 36.5 (927) | 96 (2438) | *24G-96 | 85 (38.5) |
| 57.7 | 24 | 36.5 (927) | 108 (2743) | *24G-108 | 100 (45.5) |
| 64.0 | 24 | 36.5 (927) | 120 (3048) | *24G-120 | 115 (52) |
| 70.3 | 24 | 36.5 (927) | 132 (3353) | *24G-132 | 130 (59) |
| 76.6 | 24 | 36.5 (927) | 144 (3658) | *24G-144 | 150 (68) |
42-1/2" WIDTH (28 TUBES)
| EXCHANGE AREA (Sq. ft.) |
NO. OF TUBES | WIDTH in./(mm) | LENGTH in./(mm) | PROTECH MODEL NUMBER | SHIP WT. Lbs./(kg) |
|---|---|---|---|---|---|
| 15.8 | 28 | 42.5 (1080) | 24 (610) | *28G-24 | 40 (18) |
| 19.5 | 28 | 42.5 (1080) | 30 (762) | *28G-30 | 45 (20.5) |
| 23.2 | 28 | 42.5 (1080) | 36 (915) | *28G-36 | 50 (22.5) |
| 30.6 | 28 | 42.5 (1080) | 48 (1219) | *28G-48 | 58 (26.5) |
| 38.0 | 28 | 42.5 (1080) | 60 (1524) | *28G-60 | 65 (29.5) |
| 45.4 | 28 | 42.5 (1080) | 72 (1829) | *28G-72 | 75 (34) |
| 52.8 | 28 | 42.5 (1080) | 84 (2134) | *28G-84 | 85 (38.5) |
| 60.2 | 28 | 42.5 (1080) | 96 (2438) | *28G-96 | 100 (45.5) |
| 67.6 | 28 | 42.5 (1080) | 108 (2743) | *28G-108 | 115 (52) |
| 75.0 | 28 | 42.5 (1080) | 120 (3048) | *28G-120 | 130 (59) |
| 82.4 | 28 | 42.5 (1080) | 132 (3353) | *28G-132 | 150 (68) |
| 89.8 | 28 | 42.5 (1080) | 144 (3658) | *28G-144 | 175 (79.5) |
Add (H) to end of model number for horizontal style. For vertical style, add (V) to end of model number and reverse dimensions (i.e.: width becomes coil length and length becomes coil width). Add (S) to end of model number for steam usage. Add (W) to end of model number for water usage. Consult factory for inlet/outlet sizing assistance. *Coil material:
T = Titanium
S = Stainless steel
H = Hastelloy C®
Z = Zirconium
Hastelloy C® is a registered trademark of Haynes International, Inc. Consult factory for inlet/outlet sizing assistance.
Features and Benefits
SUPERIOR CHEMICAL RESISTANCE:- Wide variety of materials available for use in heating or cooling applications for alkaline solutions, acid solutions, and rinse tanks. Check solution guide or consult with your chemical supplier for proper material selection.
- Heavy wall, 20-gauge metal tubing available in steel, 316 stainless steel, and titanium.
- 2-inch thick, low profile design. Every inch of coil surface is active exchange area.
- Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplifies installation. One inch MNPT connections standard.
- 100 PSI working pressure (steam or water).
- 4.6 square foot to 89.8 square foot of exchange area.
- Inlet and outlet connections must be sized to adequately handle water and steam volume requirements. Generally, larger inlet sizes are needed for grid coils larger than 33 sq. ft. (for steam) and 25 sq. ft. (for water).
- Consult factory for inlet/outlet sizing assistance.
- Mounting Hangers.
- Special Sizes.
- Vertical or horizontal configurations.
- Heavier gauge tubing or pipe.
- Special riser sizes, fittings, lengths, and configurations.
- Anti-floatation weights recommended for high specific gravity or highly viscous solutions.
- Zirconium, Hastelloy C®, low carbon stainless steel, and other alloys available.
- Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.
- Vacuum breakers.
- Non-conductive isolator couplings.
- L-shaped configurations for bottom heat applications.
