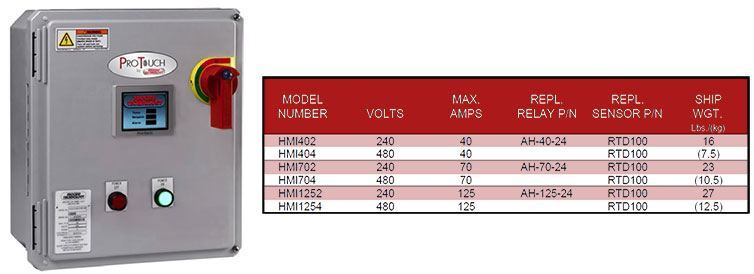

ProTouch - HMI Series Digital Combo Controls

ProTouch - HMI Series Digital Combo Controls

Model Number Volts Max. Amps Replacement Relay Replacement Sensor Shippin Weight Lbs/(Kg)
HMI402 240 40 AH-40-24 RTD100 16 (7.5)
HMI404 480 40 RTD100 16 (7.5)
HMI702 240 70 AH-70-24 RTD100 23 (10.5)
HMI704 480 70 RTD100 23 (10.5)
HMI1252 240 125 AH-125-24 RTD100 27 (12.5)
HMI1254 480 125 RTD100 27 (12.5)

Features and Benefits

IMPROVES PROCESS CONTROL:
  • Clear, 2.78 x 2.08 inch (70.5 x 52.9mm), easy to read backlit touch screen display. Provides precise control for consistent plating and etch rates in most aqueous processes.

TEMPERATURE SENSOR:
  • Fluoropolymer (FEP) covered 10-foot (3m), 100-ohm platinum sensor included standard with the control. Provides extended service in corrosive liquids and can be lengthened with ordinary copper hookup wire.

CORROSION RESISTANT ENCLOSURE:
  • NEMA 4X (indoor), IP66, gasketed plastic enclosure with sealed tactile switches and stainless steel hardware.

CERTIFICATIONS:
  • cULus

CAPACITIES:
  • Large switching capacities from 40 to 125 amps for 120 to 600 volts.
  • Adjustable temperature range from 0°F (0°C) to 999°F (999°C).
  • Single or three phase.

SAFETY FEATURES:
  • Pre-wired P1/P2 protector terminal blocks.
  • Programmable high alarm shutdown.
  • 24 VDC control.
  • Sensor short and break protection.
  • All finger-safe electrical components.

SPECIAL FEATURES:
  • Remote access capability via smart phone, tablet or computer.
  • Intuitive operator interface.
  • Ethernet communication.
  • USB connectivity.
  • Integrated programmable timer.
  • Data trend and alarm logging capabilities.
  • Operator lockout password protection.

CONSULT FACTORY FOR THE FOLLOWING OPTIONS:

  • Scalable voltage and current inputs.
  • Door handle power interlock with circuit breaker.
  • 1000-ohm platinum RTD input. Other sensors available, consult factory.
  • Integral liquid level control components.
  • Integral Ground fault circuitry.
  • Voltage, relay and current output.
  • Thermocouple over-temp protection systems.
