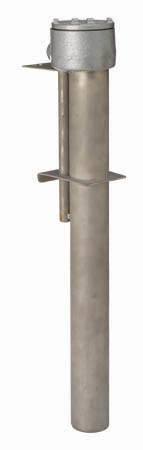

DAS Series Phosphate Heaters

DAS Series Phosphate Heaters
WATTS VOLTS HOT ZONE in./(mm) LENGTH in./(mm) Model Number SHIP WT. Lbs./(kg)
1000 120
240
7 (180) 11 (280) DAS1111-P4
DAS1211-P4
17 (8)
2000 240
480
12 (305) 17 (430) DAS2217-P4
DAS2417-P4
20 (9)
3000 240
480
18 (460) 23 (585) DAS3223-P4
DAS3423-P4
24 (11)
3500 240
480
21 (535) 29 (735) DAS3.5229-P4
DAS3.5429-P4
30 (14)
4000 240
480
28 (710) 35 (890) DAS4235-P4
DAS4435-P4
36 (16)
5000 240
480
33 (840) 41 (1040) DAS5241-P4
DAS5441-P4
42 (19)
6000 240
480
39 (990) 47 (1320) DAS6247-P4
DAS6447-P4
48 (22)
8000 240
480
49 (1245) 59 (1500) DAS8259-P4
DAS8459-P4
58 (27)
10000 240
480
62 (1575) 71 (1900) DAS10271-P4
DAS10471-P4
64 (30)

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • For use in iron, zinc and manganese phosphate tanks.

EXTREMELY RUGGED CONSTRUCTION:
  • Schedule 40, heavy wall, 316 stainless steel sheath withstands scaling better than traditional heaters.

OUTSTANDING PERFORMANCE:
  • Low watt densities of 23 watts per square inch (3.5 w/cm2) helps to minimize scaling while only utilizing the space required for a full watt density heater.

CORROSION RESISTANT HEAD:
  • Rugged cast steel terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:
  • Grounded construction.
  • Thermal protector built in. Replaceable P4 fuse standard.
  • Non-floating construction.

CERTIFICATIONS:
  • CE (except 600 volts).

SIZES:
  • 1,000 watts to 10,000 watts.

VOLTAGES:
  • 120 to 600 volts. Single phase standard, three phase available.

CONSULT FACTORY FOR THE FOLLOWING:

  • Thermal protectors: Replaceable high temperature fuses or resettable P2 bi-metal switches in two temperature ranges.
  • Special configurations and lengths.
  • Longer wire and conduit lengths.
  • Temperature and level controls sized to match the heater.

NOTE: Do not use in any aluminum reactive alkaline solutions.

We recommend temperature controls and level controls for use with this immersion heater.
