S Series Brass Solenoid Valves

For regulating temperature with steam or hot water

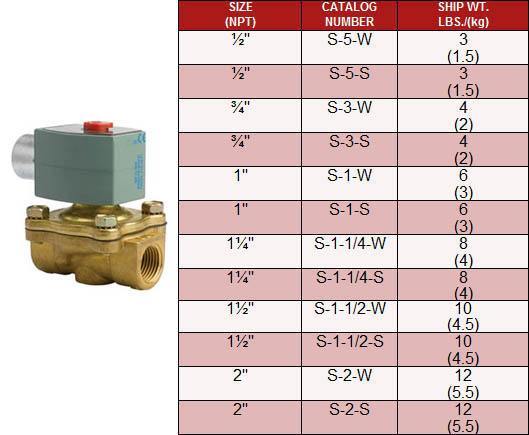

Brass Solenoid Valves (for regulating temperature with steam or hot water): S Series

Water Service

MODEL NUMBER SIZE (NPT) ORIFICE SIZE CV FACTOR SHIP WGT.
S-5-W 1/2" 5/8" 4 3 (1.5)
S-3-W 3/4" 3/4" 5 4 (2)
S-1-W 1" 1" 13 6 (3)
S-1-1/4-W 1-1/4" 1-1/8" 15 11 (5)
S-1-1/2-W 1-1/2" 1-1/4" 22.5 12 (5.5)
S-2-W 2" 1-3/4" 43 13 (6)

Steam Service

MODEL NUMBER SIZE (NPT) ORIFICE SIZE CV FACTOR SHIP WGT.
S-5-S 1/2" 5/8" 4 3 (1.5)
S-3-S 3/4" 3/4" 5 4 (2)
S-1-S 1" 1" 13.5 6 (3)
S-1-1/4-S 1-1/4" 1-1/8" 15 11 (5)
S-1-1/2-S 1-1/2" 1-1/4" 22.5 12 (5.5)
S-2-S 2" 1-3/4" 43 13 (6)

IMPROVES PROCESS CONTROL:
  • Provides on/off control of water, steam, air, or gases in a variety of heating, cooling or fluid replenishing applications.

RUGGED CONSTRUCTION:
  • Brass valve body with:
    • Buna-N seals (water service)
    • Ethylene Propylene seals (steam service)

MOISTURE RESISTANT TERMINAL ENCLOSURE:
  • Epoxy encapsulated enclosure rated for NEMA 1, 2, 3, 3S, 4 and 4X applications.

CERTIFICATIONS:
  • UL and CSA (steam valves), CSA (water valves).

CAPACITIES:
  • Sizes: ½-inch through 2-inch FNPT.
  • Two-way, normally closed valve available in 120 or 240 volts.
  • Ambient temperature range: 32°F (0°C) to 125°F (52°C).
  • Voltages: other AC and DC voltages available in 50 or 60 Hz.
  • Minimum pressure differential: 5 PSI.
  • Minimum operating pressure: 10 PSI.
  • Single phase only.
  • Maximum pressure:
    • Water service: 125 PSI at 180°F (82°C).
    • Steam service: 50 PSI at 300°F (149°C).

OPTIONS AVAILABLE - CONSULT FACTORY
  • Stainless steel valve bodies.
  • Normally open valves.
  • Higher pressure ratings.
  • Explosion resistant enclosures.
  • Three-way valves.
  • Slow opening valves.
  • Fluoropolymer seals.
  • Low-pressure drop valves for operating pressures below 10 PSI.

NOTE:
  • Always use a strainer with solenoid valves.
