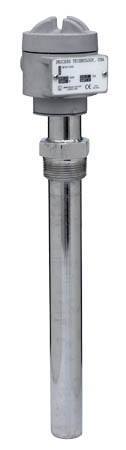

TB Series, 1-1/4" Small Tank Screw Plug Heaters

TB Series, 1-1/4 inch Small Tank Screw Plug Heaters
WATTS VOLTS LENGTH
In./(mm)
NPT 304SS MODEL NUMBER 316SS MODEL NUMBER TITANIUM MODEL NUMBER SHIP WEIGHT
Lbs/(kg)
500 120
240
8 (205) 1-1/4" FTB.5108
FTB.5208
STB.5108
STB.5208
TTB.5108
TTB.5208
8 (4)
1000 120
240
10 (255) 1-1/4" FTB1110
FTB1210
STB1110
STB1210
TTB1110
TTB1210
10 (4.5)
1500 120
240
14 (355) 1-1/4" FTB1.5114
FTB1.5214
STB1.5114
STB1.5214
TTB1.5114
TTB1.5214
14 (6.5)
2000 120
240
17 (430) 1-1/4" FTB2117
FTB2217
STB2117
STB2217
TTB2117
TTB2217
17 (8)
Other sizes available, consult factory.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • For use in most aqueous alkaline solutions and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION:
  • Heavy wall metal sheaths and screw plug available in steel, 304 stainless steel, 316 stainless steel and titanium.

OUTSTANDING PERFORMANCE:
  • Watt densities of 40 watts per square inch (6.2 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD:
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:
  • Grounded construction.

CERTIFICATIONS:
  • cULus and CE

SIZES:
  • 500 watts to 2,000 watts.

VOLTAGES:
  • 120 to 480 volts. Single phase only.

CONSULT FACTORY FOR THE FOLLOWING:

  • Special configurations and lengths.
  • Explosion resistant enclosures.
  • Longer wire and conduit lengths.
  • Lower watt densities for highly viscous solutions.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
